Medium/Long Span ADSS Tension Set

Medium/Long Span ADSS Tension Set

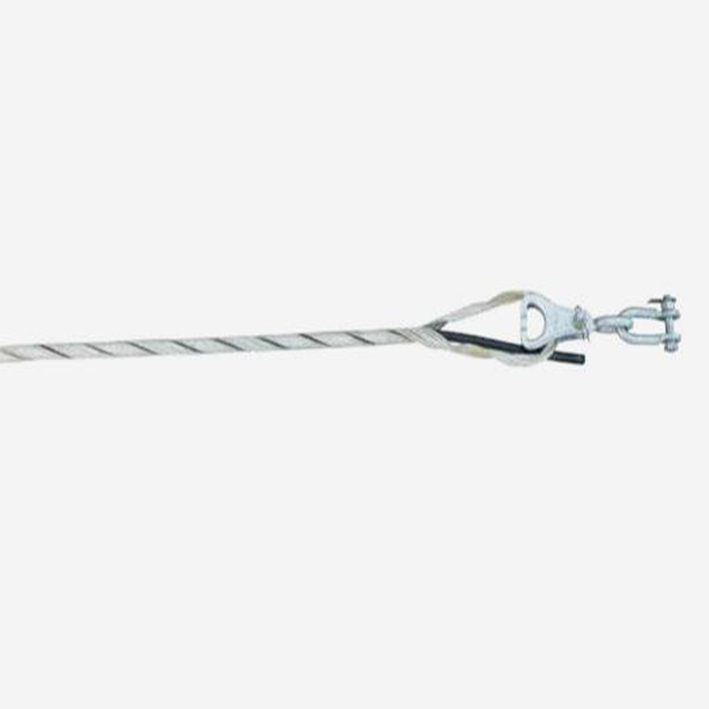

Medium/Long Span ADSS Tension Set is composed of helical Dead-end and structural reinforcing rods,the materials are aluminum-clad steel or galvanized steel,it is mainly used for ADSS installation between strain tower/pole,corner tower/pole and terminal tower/pole which span length is more than 200 with RTS of the cable is larger than 15KN, Medium Span ADSS Tension set is used for installation span length between 200-400M,Long Span ADSS Tension set is used for installation span length more than 400M.



Type

Available Dia. of Cable

Reference Span(m)

Min(mm)

Max(mm)

JSLANY 0940 020

8.6

9.4

200/300

JSLANY 1010 020

9.5

10.1

200/300

JSLANY 1070 020

10.2

10.7

200/300

JSLANY 1140 020

10.8

11.4

200/300

JSLANY 1220 020

11.5

12.2

200/300

JSLANY 1290 020

12.3

12.9

200/300

JSLANY 1370 020

13

13.7

200/300

JSLANY 1140 030

10.8

11.4

300/400

JSLANY 1220 030

11.5

12.2

300/400

JSLANY 1290 030

12.3

12.9

300/400

JSLANY 1370 030

13

13.7

300/400

JSLANY 1460 030

13.8

14.6

300/400

JSLANY 1550 030

14.7

15.5

300/400

JSLANY 1220 040

11.5

12.2

400/500

JSLANY 1290 040

12.3

12.9

400/500

JSLANY 1370 040

13

13.7

400/500

JSLANY 1460 040

13.8

14.6

400/500

JSLANY 1550 040

14.7

15.5

400/500

JSLANY 1650 040

15.6

16.5

400/500

JSLANY 1370 050

13

13.7

500/600/700

JSLANY 1460 050

13.8

14.6

500/600/700

JSLANY 1550 050

14.7

15.5

500/600/700

JSLANY 1650 050

15.6

16.5

500/600/700

JSLANY 1370 060

13

13.7

600/700/800

JSLANY 1460 060

13.8

14.6

600/700/800

JSLANY 1550 060

14.7

15.5

600/700/800

JSLANY 1650 060

15.6

16.5

600/700/800

JSLANY 1460 070

13.8

14.6

700/800/900

JSLANY 1550 070

14.7

15.5

700/800/900

JSLANY 1650 070

15.6

16.5

700/800/900

JSLANY 1750 070

16.6

17.5

700/800/900

JSLANY 1870 070

17.6

18.7

700/800/900

JSLANY 1550 080

14.7

15.5

800/900/1000

JSLANY 1650 080

15.6

16.5

800/900/1000

JSLANY 1750 080

16.6

17.5

800/900/1000

JSLANY 1870 080

17.6

18.7

800/900/1000
