Expulsion Fuse Link

ꄴPrevious： null
ꄲNext： null

Expulsion Fuse Link

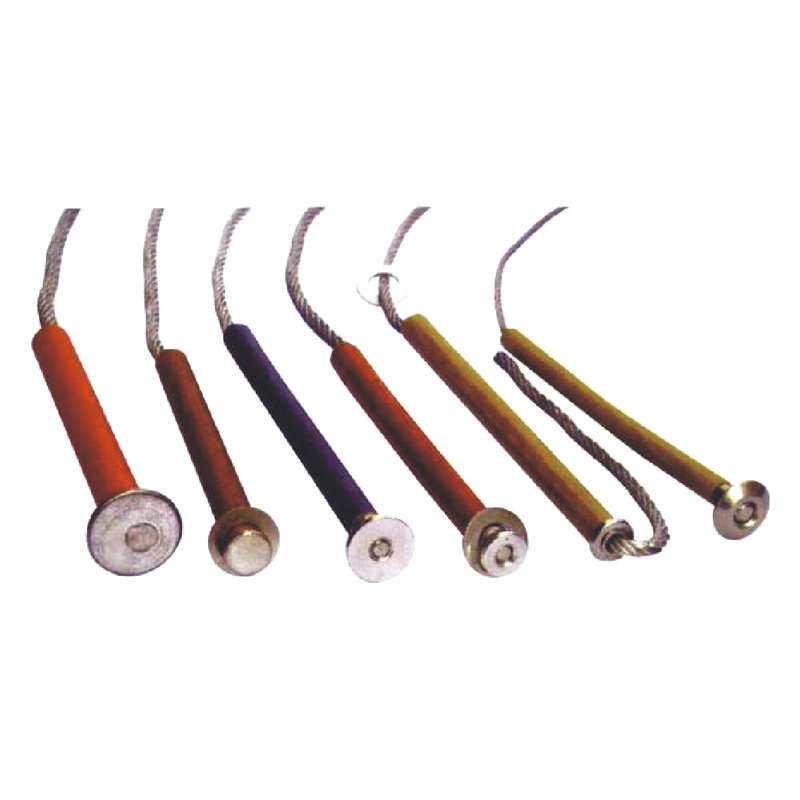

Expulsion fuse link for fuse cutout

Rated voltage: 11KV-36KV

Rated current: 1A-200A

Rate of melting: Class K & Class T

Standards: IEC 60282-2 / ANSI C37.42

Note 1

15kV

25kV

35kV

533mm(21”)

660mm(21”)

787mm(31”)

Outline Dimension



Rated

current

(A)

Dimension(mm)

A

B

C

D

F

1 to 25

12.5±0.2

19.0±0.2

Note 1

2.0

6.5

30 to 40

3.0

8.0

50 to 75

19.0±0.3

Not applicable

4.0

10.0

100 to 120

5.0

140 to 200

7.0

12.0
